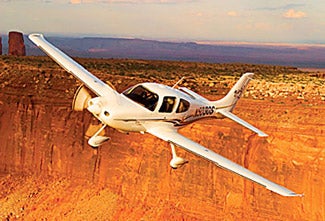

2004 Cirrus SR22-G2

Plane & Pilot

Wednesday, December 01, 2004 at 12:00 AM ET

Verified

Edited By: Omar Filipović

Key Takeaways:

The article details the specifications for the 2004 Cirrus SR22-G2, a 4-seat aircraft with a base price of $334,700.
It is powered by a 310 hp TCM IO-550-N engine with a TBO of 2000 hours, and has a maximum ramp/gross weight of 3400 lbs.
Key performance figures include a 75% power cruise speed of 180 knots and a maximum range of 821 nautical miles (at 55% power with reserve).
The aircraft has a service ceiling of 17,500 feet, a best rate of climb of 1400 fpm (SL), and requires a takeoff ground roll of 1020 feet.

See a mistake? Contact us.

2004 Cirrus SR22-G2

Base price:

$334,700

Engine make/model:

TCM IO-550-N

Horsepower@rpm@altitude:

310@2700@SL

Horsepower for takeoff:

310

TBO hrs.:

2000

Fuel type:

100/100LL

Propeller type/diameter (in.):

Hartzell CS/78

Landing gear type:

Tri./Fixed

Max ramp weight (lbs.):

3400

Gross weight (lbs.):

3400

Landing weight (lbs.):

3400

Empty weight, std. (lbs.):

2250

Useful load, std. (lbs.):

1150

Payload, full std. fuel (lbs.):

664

Usable fuel (gals.):

Oil capacity (qts.):

Wingspan:

38 ft. 6 in.

Overall length:

26 ft.

Height:

8 ft. 7 in.

Wing area (sq. ft.):

144.9

Wing loading (lbs./sq. ft.):

23.5

Power loading (lbs./hp.):

Wheel track:

10 ft. 9 in.

Wheel size (in.):

6.00 x 6

Seating capacity:

Cabin doors:

Cabin width (in.):

Cabin height (in.):

Baggage capacity (lbs.):

130

PERFORMANCE

Cruise speed, best economy (kts.):

75% power:

180

65% power:

175

55% power:

171

Max range (w/ 45-min. reserve) (nm):

75% power:

720

65% power:

770

55% power:

821

Fuel consumption, best economy (gph):

75% power:

16.4

65% power:

15.0

55% power:

13.9

Estimated endurance (65%) (hrs):

4.5

Vs (knots):

Vs_o (knots):

Best rate of climb (SL fpm):

1400

Best rate of climb,8,000 ft. (fpm):

842

Service ceiling (ft.):

17,500

Takeoff ground roll (ft.):

1020

Takeoff over 50-ft. obstacle (ft.):

1575

Landing ground roll (ft.):

1140

Landing over 50-ft. obstacle (ft.):

2325

* calculated

Sources: Jane’s All The World’s Aircraft and manufacturer’s specs
