An Electric Propulsion Pioneer

Earthstar Aircraft’s Thunder Gull, a  remarkable small, single-seater—until the company’s Odyssey model came out—was ahead of its time. Over a successful run dating back to the 1990s, the Thunder Gull…

Over a successful run dating back to the 1990s, Thunder Gull evolved into several variations and developer Mark Beierle experimented with various propulsion systems. [Earthstar Aircraft]

Earthstar Aircraft's Thunder Gull, a  remarkable small, single-seater—until the company's Odyssey model came out—was ahead of its time. Over a successful run dating back to the 1990s, the Thunder Gull evolved into several variations, and developer Mark Beierle experimented with various propulsion systems. A gifted designer, Beierle pursued development more than production, so the total number of Gulls has never become large.

If you are looking to buy, getting a current owner to part with their pride and joy could be challenging. The Earthstar website is functional but does not appear to have been updated in some time.

Thunder Gull owners or pilots may be purists, insisting nothing compares to their Gull, yet some interested buyers are aware Titan Aircraft makes a very similar aircraft. The Ohio company remains active, attending airshows and displaying its Tornado line.

Gull 2000

The earliest designs from Beierle's inventive mind were called Thunder Gull. I recall seeing these at airshows in the ’90s being flown as an experienced driver might operate a sports car. Wing span is a mere 20 feet. When you sat in the fully-enclosed cockpit it looked like you could open the door and reach out to touch the wingtip. Thunder Gull’s diminutive size made it as sporty and agile on the ground as it is in the air, a rare capability for most airplanes.

Later came Odyssey, a side-by-side, staggered-seating two seater. It only had a 26 foot wingspan. Most light aircraft in the space use 30-36 foot wingspans on aircraft that did not carry any more payload. Consequently, I viewed Thunder Gull’s wing design to be “hard working.”

Later still came Soaring Gull, with what looked to be a long wing at 28 feet, still shorter than most other comparable aircraft. This gave Soaring Gull a solid 16:1 glide ratio according to Earthstar, meaning any experienced soaring pilot could easily keep Soaring Gull aloft for a long time with the engine shut down. This fact later led to electric power, which I’ll touch on below.

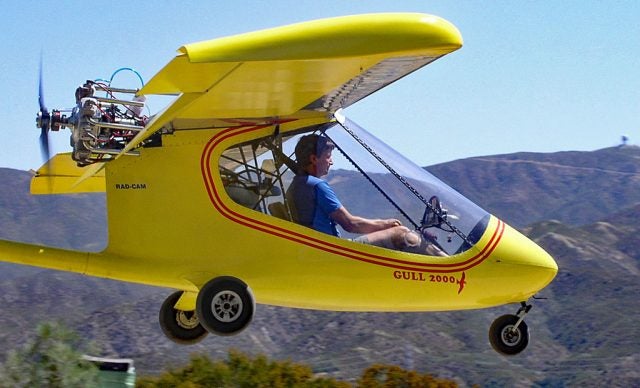

More than airplanes, Beierle also designed a clean sheet radial engine that he called “Rad-Cam,” which he is testing in this image. [Earthstar Aircraft]

As you examine this design, you see Beierle's design philosophy. He sought to make the most efficient aircraft he could. One definition of that was a flying machine that uses the least fuel. Beierle defined himself as “a minimalist,” and this sentiment is carried throughout his highly-optimized aircraft.

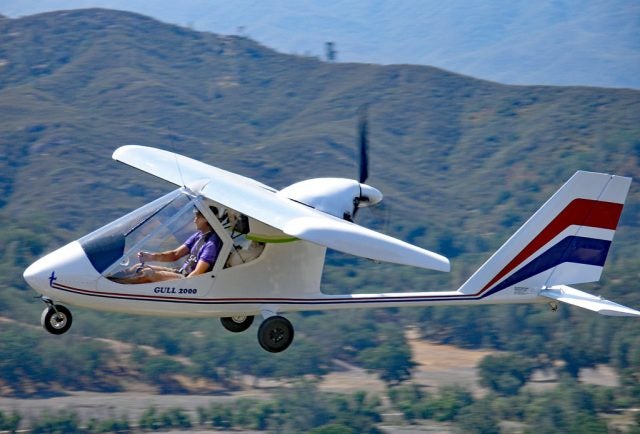

For the then-new millennia, when we successfully avoided the predicted terror of Y2K (remember that?), Beierle came out with Gull 2000. You can read my full pilot report from 2003 for lots of detail about the aircraft.

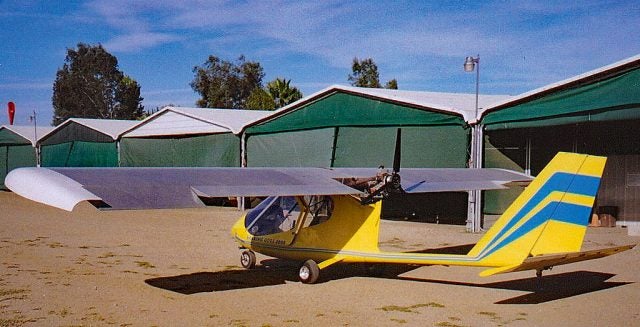

On Soaring Gull’s lean fuselage, these wings look long though they are only 28 feet in span. [Earthstar Aircraft]

As Gull 2000 arrived, Beierle had gotten married and his strict minimalism lead to improvements in creature comforts. Notably, the Gull 2000 is wider than previous Thunder Gull aircraft.

Here’s how Beierle promoted his new creation: “Prototypes were flown over 5,400 hours. Considerable care has been taken in the design and testing process,” he wrote.

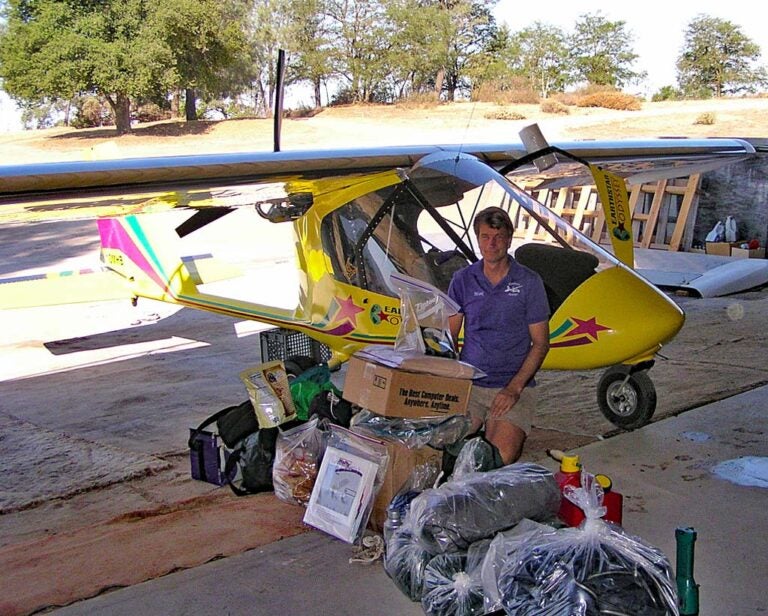

Beierle often flew long cross country flights to airshows, taking everything he needed to display at the event. Here he’s seen before loading the aircraft. [Earthstar Aircraft]

“The result is a stall and spin resistant aircraft with superior handling qualities both on the ground and in the air. The responsive ailerons provide roll control throughout a stall attempt. The beginning flyer will find an easy to fly, stable, and forgiving aircraft.

“The Thunder Gull 2000 and Odyssey models maintain the responsive and nimble control necessary for the demanding pilot. All of the Earthstar Aircraft models are fun cross-country machines and have been flown from coast-to-coast many times.

“Flight tested to a “G” loading of +5.9 and -3 and are designed to +6 and -4 yield. The ultralight model has been certified to meet the FAA’s FAR-103 requirements. VNE for all models is 120 miles per hour.”

eGull [Earthstar Aircraft]

Electric eGull

Beierle made an efficient aircraft, and one measure of success was to use less fuel. As the new millennium arrived, interest in electric propulsion was growing. Given his goals, Beierle quickly adopted the idea and his electric experimentation began. While giants like Boeing and Airbus spend billions on electric propulsion concepts, electric airplane development of affordable aircraft is often done on tiny budgets by entrepreneurs like Beierle.

This is also a fast-changing field, perhaps explaining why finding an electric-powered Earthstar Gull will be especially difficult. Nonetheless, the efficiency of Beierle’s Gull design combined the high torque of an electric motor with a low airframe weight to make a highly-workable electric propulsion design.

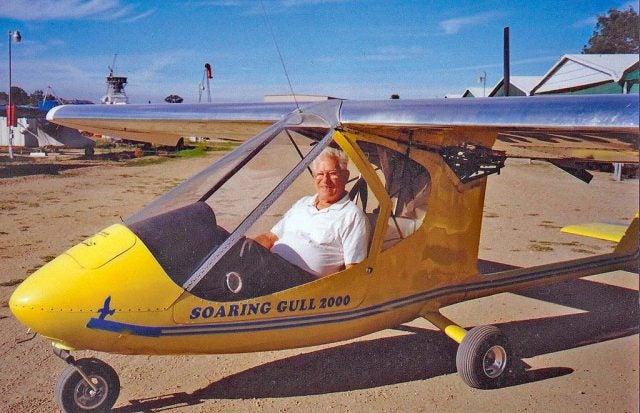

Gene Chase worked with Beierle to create this Soaring Gull. With a 28-foot span, the design achieved a 16:1 glide ratio, plenty to do some genuine soaring. [Earthstar Aircraft]

Combine Gull 2000’s more user-friendly interior with the design’s great flying qualities and power it with a potent electric motor and you really have something fun!

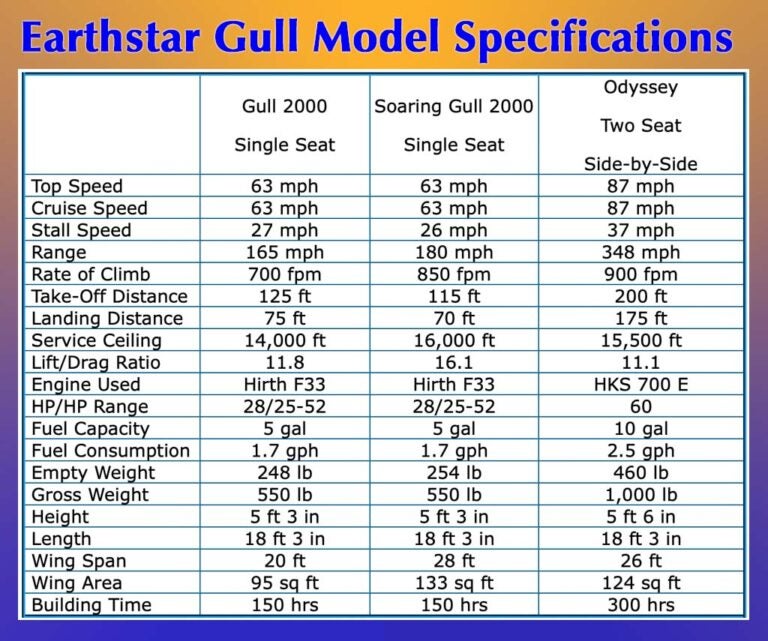

All specifications and data provided by Earthstar Aircraft, from its website.

Here is the video interview with Beierle about his electric propulsion investigations. The second video below looks like a duplicate but is a different production.

Just a year ago, Dave updated his coverage of Earthstar and Thundergull. Flying scenes are featured and fans of Videoman Dave Loveman may enjoy hearing his familiar voice asking questions of Beierle.
