|STANDARD DATA: Seats: 5; Gross weight: 4,000 lbs.; Empty weight: 2,474 lbs.; Fuel capacity: 90 gals.; Engine: 370 hp Wright Whirlwind.
PERFORMANCE: Top speed: 170 mph; Cruise speed: 164 mph; Stall speed: 49 mph; Initial climb rate: 1,140 fpm; Range: 840 nm; Service ceiling: 19,000 ft.

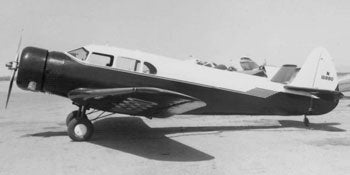

First introduced in 1936, the F-45 was a five-seat cabin monoplane intended as a high-performance personal transport aircraft. Primarily used as an executive aircraft, it was built with a mixed construction that made use of a fabric-covered steel-tube fuselage and a wooden outer wing section. While the prototype was powered by a 220 hp Jacobs radial engine, subsequent production models received the 370 hp, seven-cylinder Wright Whirlwind radial engine. Many reengined versions are still in active service powered by 450 hp Pratt & Whitney Wasp Juniors and 475 hp Wright Whirlwinds. Original Model 45s were capable of cruising at 164 mph at 75% power and 8,000 feet. Accommodations provided for two at the controls and three on a cross-seat in the back of the cab. A door on each side of the cabin made for easy entry.
